FREE SHIPPING
Includes 1 x Power Module & 2 x 5kW Battery Module
Modular Hybrid Power Solution (Up to 15kW System)
Integrates Grid, Solar, Diesel Generator & Battery
Stable Lithium Battery
Mobile App Controlled
R79,999.00
AC Output
— Rated Power Output: 6 kVA / 5 kW
— Output Voltage: 230 VAC/50Hz
— Max. Output Current: 25.8A
—Max. *** Input Power: 6kW
AC Input
— AC Input Voltage: 230VAC/50Hz
— Surge Protection: 3 kVA/5 kVA, 8/20 s
— Max. Input Current: 30
PV Input
— Start-up Voltage: 100VDC
— MPPT Voltage: 90-420VDC
— Max. Input Voltage (Voc): 435VDC
— Max. Input Current (Isc): 2 x 15 A
— Recommended PV Power: 5000 Wp
— No. PV Strings/MPPT Routes: 2/1
— Optimizer Compatibility: DC Mbus Compatible
— DC Surge Protection: 10 kA, 8/20 s, criterion C
— Max. Input Current per Strings: 15 A
General
— Communication: Wi-Fi
— Display: LED’s, NetEco
— Battery Module Capacity: 5 kWh per module
— Max. Output Power: 2.5kW per Module, 5kW per ESS
— Output/Input Voltage: 370-480VDC
— Cycle Life: 6000 cycles @ 25 C, 100% DOD
What’s in the boxes

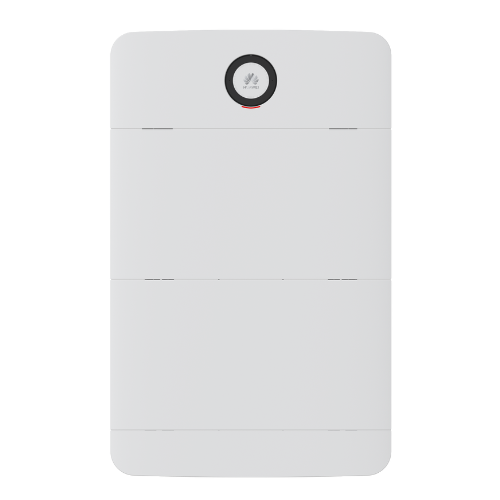

— 1 x Huawei 5KW Isitepower-M ESS Power Module / Inverter
— 2 x Huawei 5KWh Isitepower-M ESS Battery Module
— 1 x Huawei Floor Mounting Base
